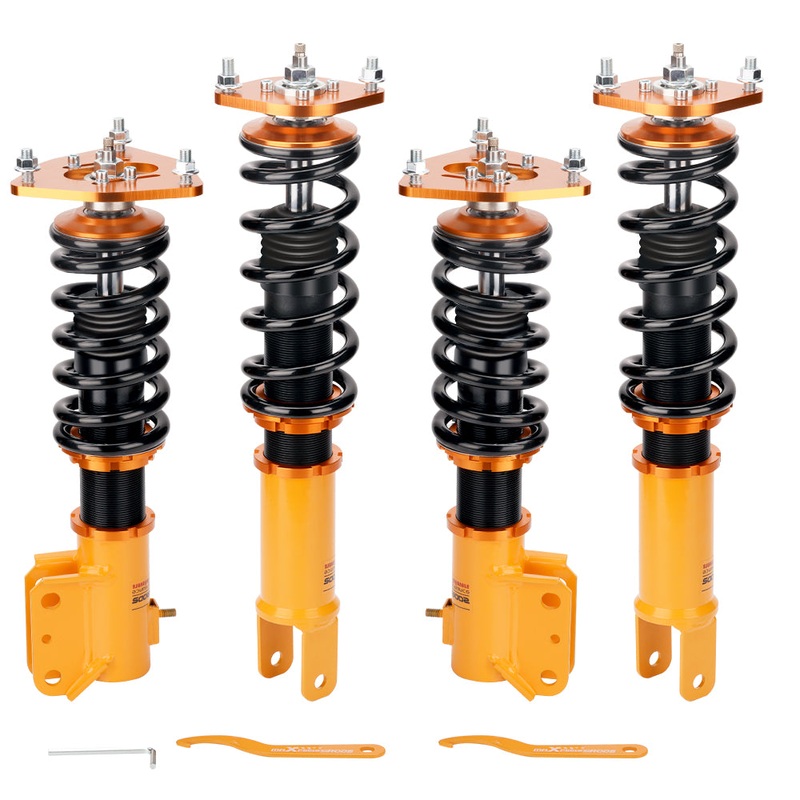

Mitsubishi Evolution / Lancer Evo 7 8 9CT9A2001-2007 Shocks Coilovers Struts Suspension full Kit lowering kit

Details

Application

Only Compatible for Mitsubishi Evolution / Lancer Evo 7 8 9 CT9A 2001-2007 Platform: 4G63

Compatible for Evolution VII Seventh generation 2001-2003

Compatible for Evolution VIII Eighth generation 2003-2005

Compatible for Evolution IX Ninth generation 2005-2007

Please notice that these coilovers will not fit Lancer/Mirage compatible for FWD 4G94 or 4G69 version 2000-2007

Specification

Top mount: Front camber platerear pillow ball

Damping: 24 levels rebound damping adjustable

Spring rate Front: 9 kg/mm (504 lbs/in)

Spring rate Rear: 7 kg/mm (392 lbs/in)

Spring length Front: 190mm

Spring length Rear: 220mm

Adjustable height: lowering 1-3 inch

Front coilover length: 415mm-505mm

Rear coilover length: 495mm-560mm

Shock type: Twin tube

Spring Preload: 7-10 mm

Color: gold body with black spring

Feature

* Adjustable ride height
* Adjustable pre-load spring tension
* Pillow ball top mount — this design helps combat noise while tuning. It also improves the steering feel and response
* Most components are made from 6061 aluminum with T6 for increased hardness — the advantages include excellent strength, and aluminum helps keep the weight down.
* Hi Tensile performance spring – Under 600,000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability and performance.
* All inserts come with fitted rubber boots to protect the damper and keep clean.
* Improve your handling performance without sacrifice comfortable ride.
* A fast and affordable way to easily upgrade your car’s appearance.
* Easy installation with right tools.
* Ideal for any track, drift and fast road and can also be used for daily driving.

Note

* No instruction included; Professional installation alignment suggested.
* Please check our store for other auto parts you may be interested in.
* Please feel free to contact us for whatever we can help.

Warranty: one year warranty for any manufacturing defect
