Details

GT3582 GT35 Turbo Turbocharger T3 A/R.63 + FMIC INTERCOOLER + 76MM 3″ Piping Kit

This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.3″ 76mm / 3INCH Aluminum Universal Intercooler Turbo Piping Pipe Kit fits all Turbo Projects.600x300x76mm Intercooler fits Universalengine & vehicle.ApplicationPerfect for all 4/6 cylinder and 3.0L-6.0L enginesHorse Power:Capable of Boosting Horse Power up to 600HPCooling Type:Water + OilSpecificationTurboExhaust Inlet (Turbo Manifold) Flange:T3 FlangeExhaust Outlet () Flange:4 BoltTurbine Trim:84Turbine Inducer Diameter:68mmTurbine Exducer Diameter:62.4mmTurbine A/R:0.63Compressor Trim:57Compressor Inducer Diameter:61.5mmCompressor Exducer Diameter:81.5mmCompressor A/R:0.7Bearing:Wet FloatWarranty:2 YearInternal Wastegate:NoIntercooler Turbo Piping Pipe KitPipe Thickness: 1.8mmPipe length: 18”-100% brand new Never been tried or installed.
-100% quality assurance tested
-Made out of high quality of 6061 aluminum Manual polishing finishedIntercooler

Core Dimension:600 X 300 X 76 MM

Inlet / outlet size: 3″ inch

Thickness:3″ (76mm)

Color:White

Intercoolers are designed with a Bar & Palte core which has the highest thermodynamic dissipative process.
These universal intercoolers come with a 3″ inlet and outlet.

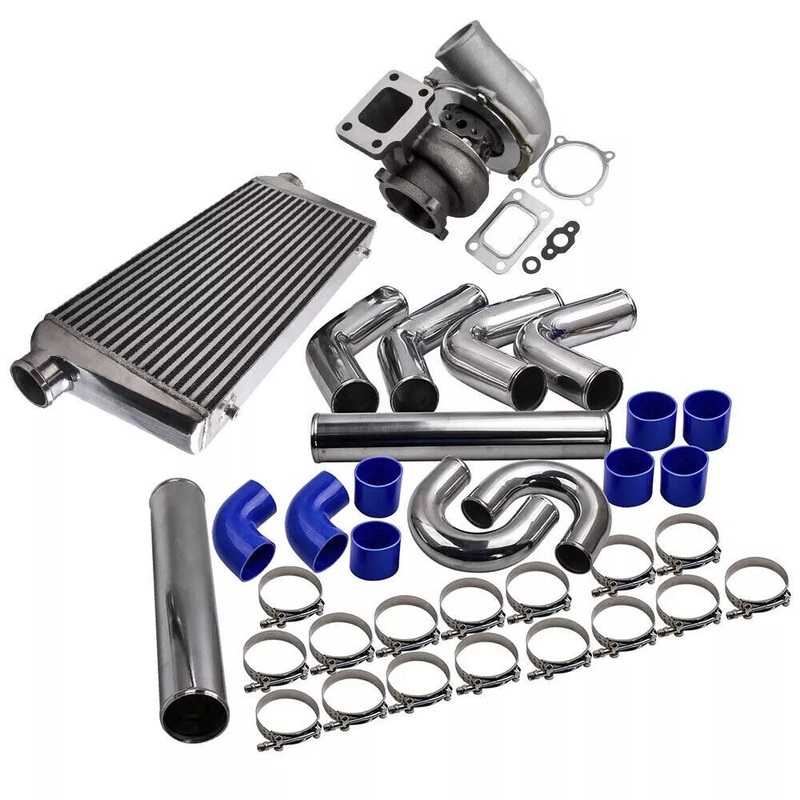

Package Including

1x Turbo and gaskets

1x 600x300x76mm Intercooler

2x 90 Degree Aluminum Pipe 3″

2x Straight aluminum pipe 3″

2x 45 Degree Aluminum Pipe 3″

2x U Aluminum Pipe 3″

8 x high tempature silicone hose: (6x straight, 2 x 90degree) Blue

16x T-bolt Clamps
